Model No: FB-ONU-XON-W5-D4-2G-A

GPON ONT/ONU Product Brochure Dual Band Qua-Antennas High-Performance Terminal for Modern Networks

This FB-ONU-XON-W5-D4-2G-A is A high-performance fiber terminal designed for enterprise and large-scale deployments. Features dual-band Wi-Fi 5 (802.11ac) with 4*5dBi antennas, delivering 1.2Gbps (300Mbps@2.4GHz + 867Mbps@5GHz) and extended coverage. Supports GPON/GEPON hybrid mode (2.5Gbps↓/1.25G↑) and acts as an EasyMesh controller for up to 8 agents. Equipped with 2*Gigabit Ethernet ports, a dual-core CPU, and hardware NAT for high-density traffic. Compliant with ITU-T G.984.x, it offers AES-128 encryption, remote management via OMCI/TR069, and ≤12W power consumption. Ideal for hotels, campuses, and industrial sites requiring robust, scalable connectivity.

Quantity :

add to cart

Contact Now

1.Product Overview

This FB-ONU-XON-W5-D4-2G-A is A high-performance fiber terminal designed for enterprise and large-scale deployments. Features dual-band Wi-Fi 5 (802.11ac) with 4*5dBi antennas, delivering 1.2Gbps (300Mbps@2.4GHz + 867Mbps@5GHz) and extended coverage. Supports GPON/GEPON hybrid mode (2.5Gbps↓/1.25G↑) and acts as an EasyMesh controller for up to 8 agents. Equipped with 2*Gigabit Ethernet ports, a dual-core CPU, and hardware NAT for high-density traffic. Compliant with ITU-T G.984.x, it offers AES-128 encryption, remote management via OMCI/TR069, and ≤12W power consumption. Ideal for hotels, campuses, and industrial sites requiring robust, scalable connectivity.

2.Key Features

Dual-Band WiFi & Ethernet Ports:

2 Gigabit Ethernet Ports: 10/100/1000M auto-negotiation, RJ45 interfaces.

WiFi5 (802.11ac): Dual-band (2.4GHz + 5GHz) with 2*2 MIMO, delivering speeds up to 1.2Gbps.

Compliance & Standards:

GPON Compliance: Fully compliant with ITU-T G.984/G.987, ensuring seamless integration with OLT systems.

Global Interoperability: Meets international telecom standards for broad compatibility.

Energy Efficiency:

Low Power Consumption: ≤12W operational power, designed for eco-friendly deployments.

Universal Power Adapter: 12V DC input, suitable for diverse installation environments.

Remote Management:

OMCI Support: Enables remote configuration, monitoring, and firmware upgrades via OLT.

Multi-Management Interfaces: TR069, Telnet, and web-based GUI for seamless network integration.

3.Technical Specifications

Category	Details
Dimensions	17812030mm (Compact, wall-mountable design)
Ports	1GPON(SC/UPC/APC) (APC needs to be customized) 210/100/1000M Ethernet, Dual-Band WiFi (2.4GHz & 5GHz)
Optical Power	TX: 0 to +4dBm; RX Sensitivity: -27dBm
Transmission	Up to 20km over single-mode fiber (G.652)
Management	OMCI, TR069, SNMP, CLI, Web GUI
Power Supply	12V DC, ≤12W consumption
Operating Temp	-10°C to +55°C

4.Operator-Centric Benefits

Reliable Performance

Advanced QoS: 4 traffic queues with SP/WRR scheduling, VLAN tagging (8 groups), and ACL support.

Carrier-Grade Security: Built-in firewall, MAC/IP filtering, and DDoS protection.

Easy Deployment

Plug-and-Play: Auto-detection of GPON/EPON modes, reducing setup complexity.

LED Indicators: Real-time status monitoring (PON, LOS, WiFi, Ethernet).

Future-Proof Design

Dual-Stack Support: IPv4/IPv6 compatibility for seamless network evolution.

Mesh Networking: Supports EasyMesh protocol for extended WiFi coverage.

5.Applications

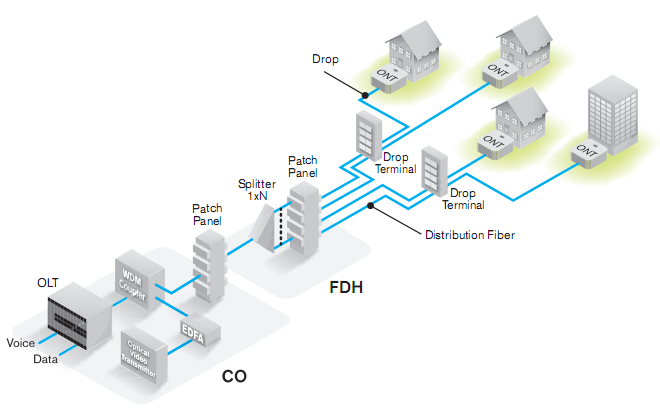

Residential FTTH: High-speed internet, IPTV, and smart home connectivity.

Enterprise Solutions: Secure VPN, VoIP, and multi-service aggregation.

Rural Deployments: Long-reach GPON connectivity with low power demands.

6.Packing Info

Quantity	Weight	Carton Size
1pcs/ctn	0.45kg/ctn	22015070mm
20pcs/ctn	11kg/ctn	535470280mm

Elevate your fiber network with a compact, energy-efficient, and feature-rich GPON terminal
