Model No: FB-ONU-XON-W5-D2-2G-A

GPON ONT/ONU Product Dual-Antenna Dual Band High-Performance Economical Terminal for Seamless Connectivity

This FB-ONU-XON-W5-D2-2G-A ONU is A compact, cost-effective fiber terminal designed for seamless home and small business connectivity. Features dual-band Wi-Fi 5 (802.11ac) with 2*5dBi antennas, delivering up to 1.2Gbps (300Mbps@2.4GHz + 867Mbps@5GHz) for smooth streaming and IoT support. Equipped with 2*Gigabit Ethernet ports and compliant with ITU-T G.984 GPON standards, it ensures reliable 20km fiber transmission and 1:128 split ratio. Low power consumption (≤12W), wall-mountable design, and remote management via OMCI/TR069 simplify deployment. Ideal for residential FTTH, VoIP, and small offices needing secure, future-ready IPv4/IPv6 connectivity.

Quantity :

add to cart

Contact Now

1.Product Overview

This FB-ONU-XON-W5-D2-2G-A ONU is A compact, cost-effective fiber terminal designed for seamless home and small business connectivity. Features dual-band Wi-Fi 5 (802.11ac) with 2*5dBi antennas, delivering up to 1.2Gbps (300Mbps@2.4GHz + 867Mbps@5GHz) for smooth streaming and IoT support. Equipped with 2*Gigabit Ethernet ports and compliant with ITU-T G.984 GPON standards, it ensures reliable 20km fiber transmission and 1:128 split ratio. Low power consumption (≤12W), wall-mountable design, and remote management via OMCI/TR069 simplify deployment. Ideal for residential FTTH, VoIP, and small offices needing secure, future-ready IPv4/IPv6 connectivity.

2.Key Features

Dual-Band WiFi & Ethernet Ports:

2 Gigabit Ethernet Ports: 10/100/1000M auto-negotiation, RJ45 interfaces.

WiFi 5 (802.11ac): Dual-band (2.4GHz + 5GHz) with 2*5dBi external antennas, delivering speeds up to 1.2Gbps.

Hybrid GPON/GEPON Support:

Dual-Mode Compatibility: Supports both ITU-T G.984.x GPON and IEEE 802.3ah GEPON standards.

High-Speed Uplink: 2.5Gbps downstream / 1.25Gbps upstream.

Energy Efficiency:

Low Power Consumption: ≤12W operational power with 12V DC input.

Surge Protection: 4KV surge protection for stable performance.

Advanced Mesh Networking:

EasyMesh Controller: Supports up to 8 Mesh agents, covering 1,500㎡ with seamless roaming.

Backhaul Options: Ethernet or WiFi-based mesh connectivity.

Remote Management:

OMCI/TR069 Support: Remote configuration, monitoring, and firmware upgrades.

Multi-Management Interfaces: Web GUI, CLI, and SNMP for flexible control.

3.Technical Specifications

Category	Details
Dimensions	135mm106mm30mm(Compact, wall-mountable design)
Ports	1GPON/GEPON (SC/UPC/APC) 210/100/1000M Ethernet
WiFi Performance	2.4GHz (300Mbps) + 5GHz (867Mbps), 2*5dBi dual-band antennas
Optical Power	TX: 0 to +5dBm; RX Sensitivity: -30dBm (GPON), -28dBm (GEPON)
Transmission	Up to 20km over single-mode fiber (G.652)
Management	OMCI, TR069, SNMP, CLI, Web GUI
Operating Temp	0°C to +45°C

4.Operator-Centric Benefits

Robust Performance

Dual-Core CPU: 900MHz MIPS + 500MHz RLX processors for high-speed data processing.

Hardware NAT: Optimized for routing and multi-WAN support (up to 8 connections).

Enhanced Security

AES-128 Encryption: Secures GPON downstream traffic.

Firewall & ACL: MAC/IP filtering, DDoS protection, and port isolation.

Scalable Deployment

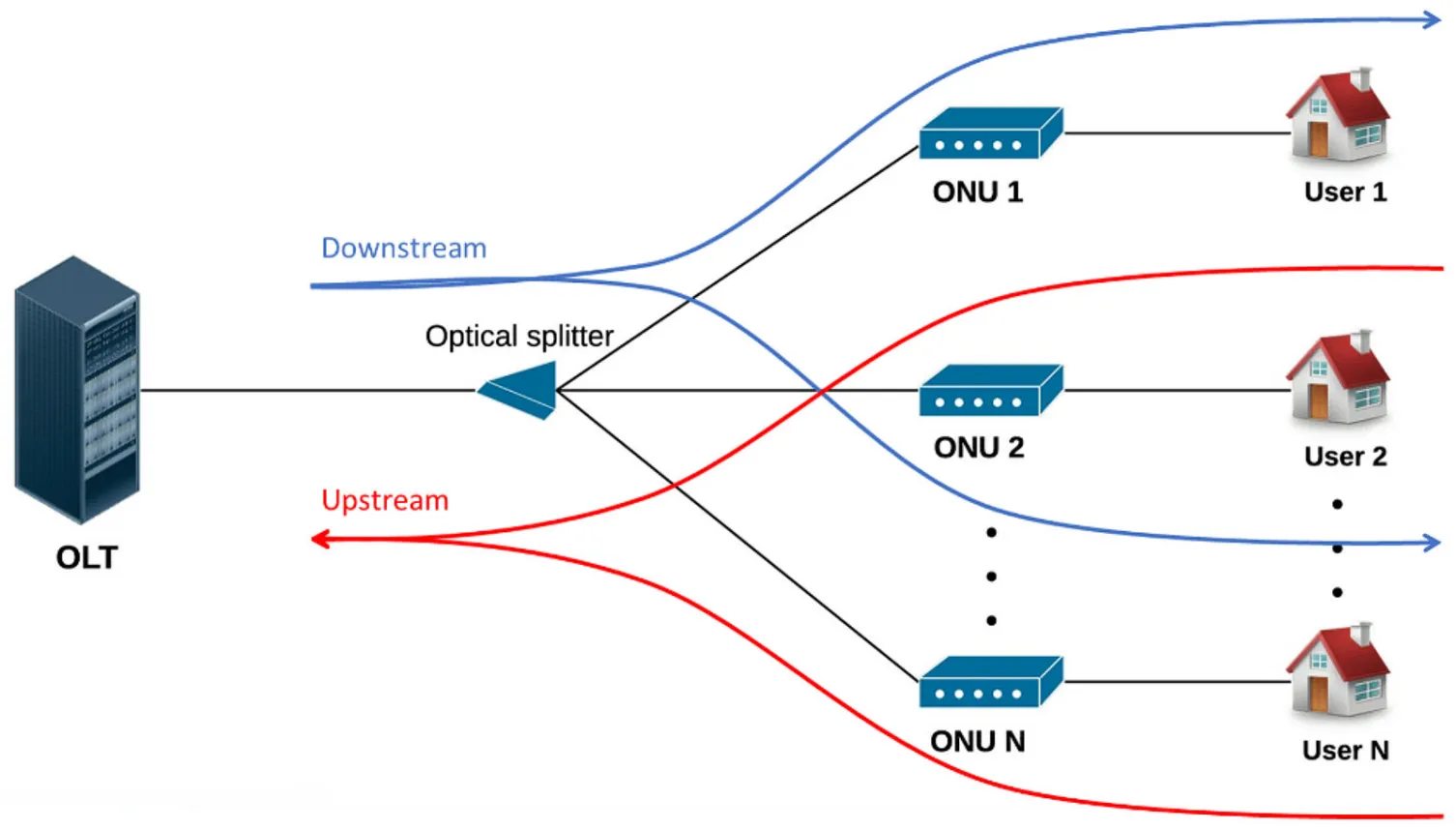

1:128 Split Ratio: Supports dense subscriber environments.

IPv4/IPv6 Dual-Stack: Future-proof for evolving network requirements.

Easy Integration

Interoperability: Compatible with major GPON/GEPON OLT platforms

Plug-and-Play: Auto-detects PON mode (GPON/EPON) for rapid installation.

WiFi & Mesh Capabilities

Dual-Band Coverage: 2.4GHz (300Mbps) + 5GHz (867Mbps) with Beamforming and Band Steering.

Mesh Protocols: Supports IEEE 802.11k/v/r/s for seamless roaming and self-healing networks.

Client Capacity: Up to 64 devices per WiFi band (128 total).

5.Applications

Residential FTTH: High-speed internet, IPTV, and smart home connectivity.

Enterprise Solutions: Secure VPN, VoIP, and multi-service aggregation.

Large-Scale Coverage: Mesh networks for hotels, campuses, and rural areas.

6.Packing Info

Quantity	Weight	Carton Size
1pcs/ctn	0.4kg/ctn	18015070mm
20pcs/ctn	9kg/ctn	490310300mm

A compact, dual-antenna GPON terminal designed for high-speed connectivity and scalable mesh networks.
